YZ-200T Smart Background Music Host 4.3 Inch Screen

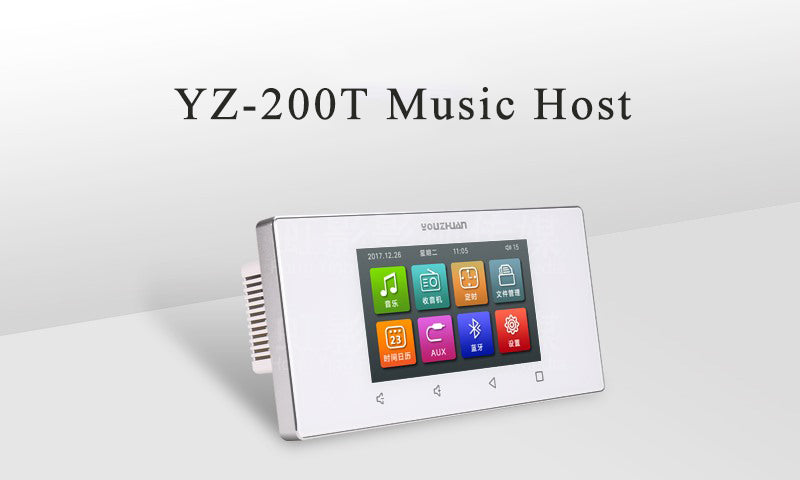

YZ-200T Music Host
YOUZHUAN with years of background music audio design experience, YZ-200T is embedded in the wall ,ARM9 processor, integrated 4.3 inch touch screen, TI class D power amplifier,industrial power supply, anti-interference performance is stable.
Support RS485 protocol, Bluetooth push music, BT, FM, AUX standard, TF card slot, I/O dry contact signal input, audio input and output etc..
It has been widely used in family background music, hotel background music, store background music, cafe background music, high-end venue background music.
Basic Info.:
Main control parameters:
CPU ARM9 processor
Audio Integrated audio decording
Bluetooth Built-in bluetooth support for modifying name and password
Radio Built-in radio antenna
Infrared remote control Infrared receiving
Panel interface:
PanelTF card slot Plug and play also for upgrading interfaces
Power button Switching power
Touch button Power on,standby ,return,volume,main interface

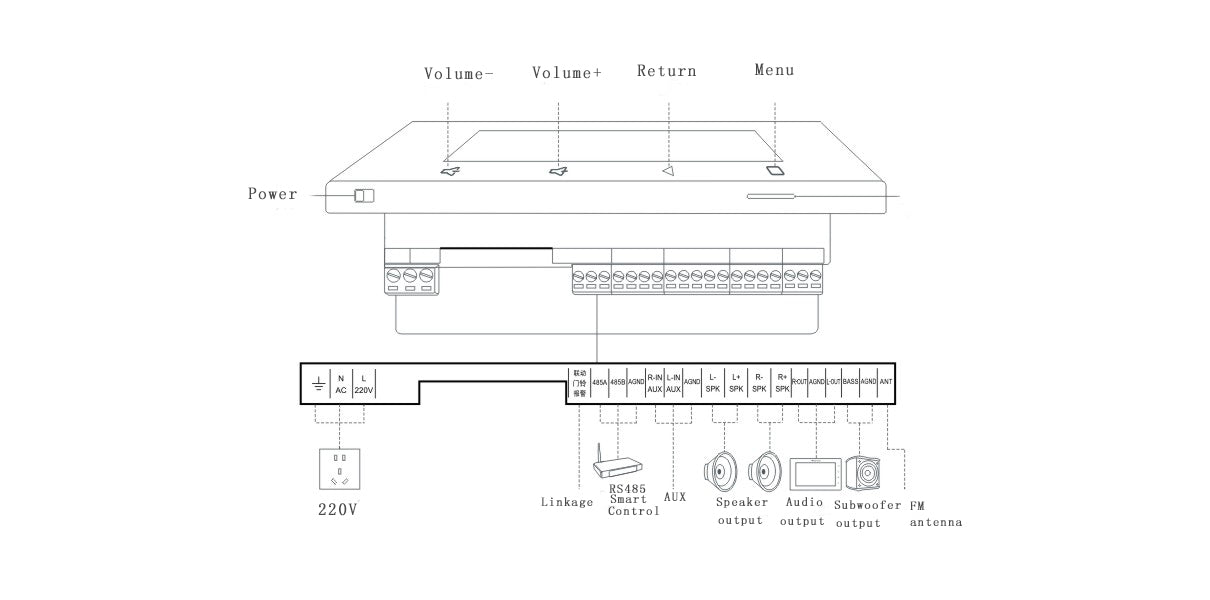

Back interface:
Power interface AC 110V-250V
Doorbell interface I/O Lower level trigger
Alarm interface I/O Lower level trigger
Linkage interface I/O Low level trigger
Serial port interface RS485
AUX interface External audio input
Speaker output Left and right channel speaker output
Bass interface Subwoofer outputAudio interface Left and right channel audio output
Radio interface Radio antenna
Support extended Support customization of multiple industry interface
Audio parameters:
Audio formats MP3,WMA,APE,FLAC,OGG,AAC,AC3
Frequency range 20HZ-20KHZ
Audio signal to noise ratio 80DB
Stereo Isolation >60DB
Horn load 4-8??

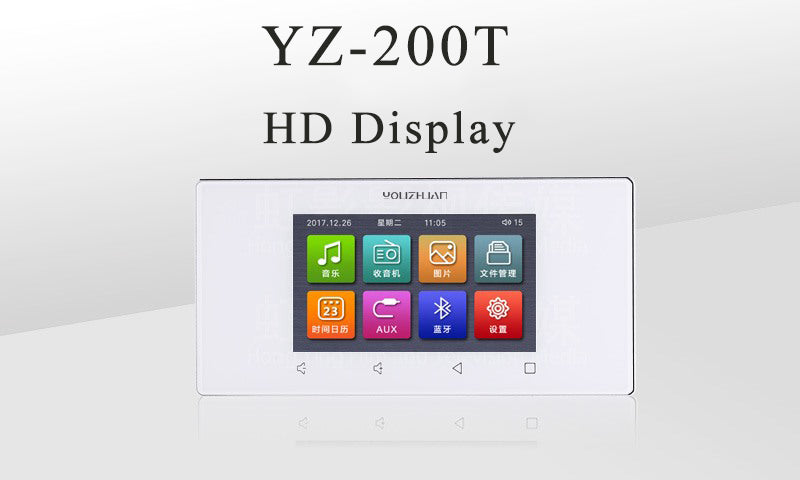

Display parameters:
Screen size 4.3 inch
Resolution 480*272
Scale 16:09
Screen panel TFT panel
Contrast 1000:01:00
Display brightness 400cd/m2
Visual angle Wide visual angle150°
Backlight type LED backlight screen Life 40000h
Machine parameters:
Operation Touch/Remote control
Installation Wall-mounted embedded
Power supply 70W
Speaker output 18W+18W
Working temperature 20°-80°
Material PC with fireproof material aluminum alloy and high gloss frame
Product size 172*86*50MM
Back box size Double 86 back box
Color White/Gold
Packing list Accessories/Instructions/Warranty card
Other parameters:
Anti-Vibration GB242 Standard
Anti-interference EMC|EMI Anti-electromagnetic interference
